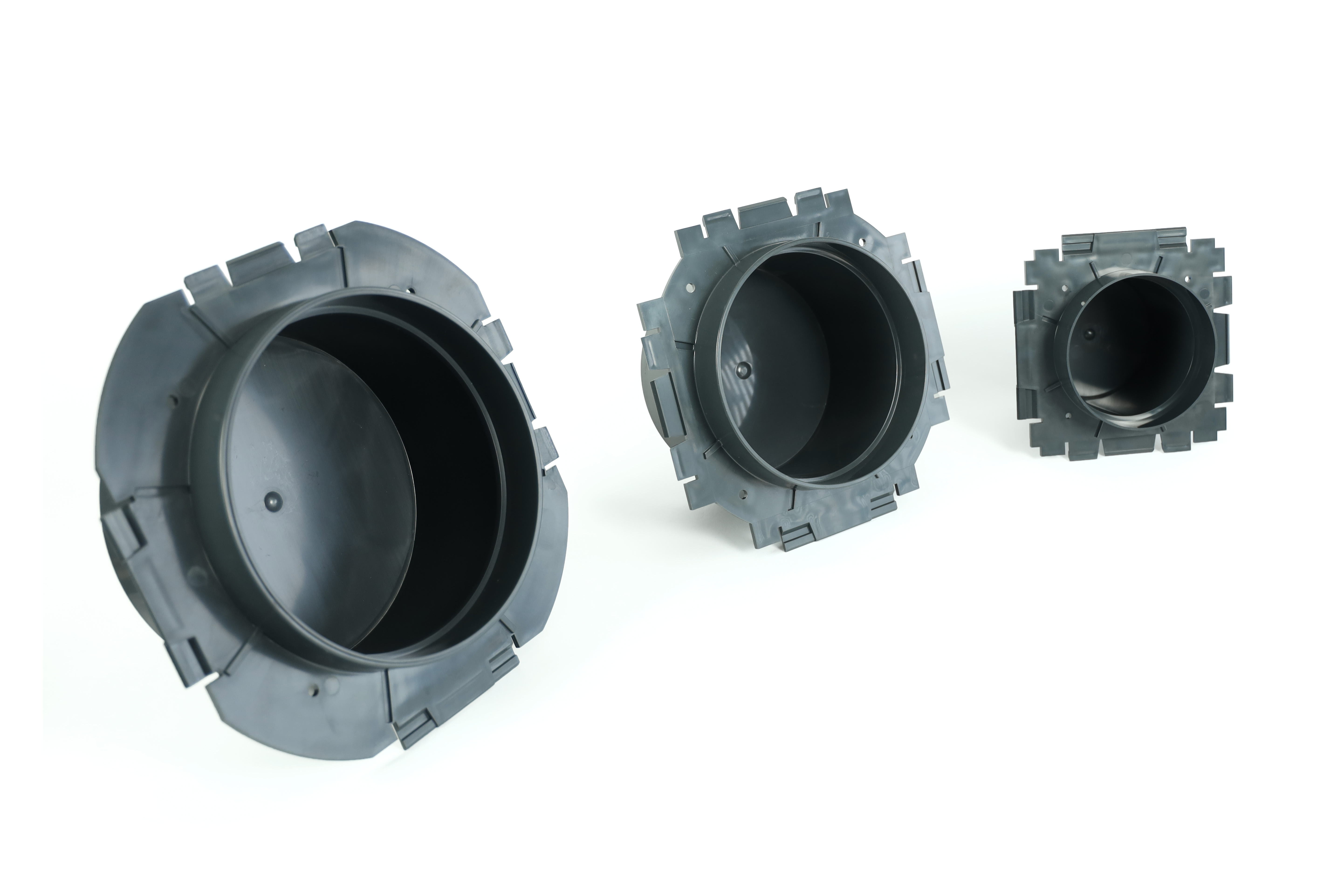

Casting Module CCM
CCM150 and CCM200
The CCM150 casting module is designed to be embedded in a concrete wall. The collapse creates a round, watertightly sealed opening that can later be used for the installation of a penetration with cables or pipes. The module is designed for penetrations of 150mm diameter. As long as the casting module is not in use, a round hole has been created in the wall, which is sealed watertight with a break-away cover.
Depending on the thickness of the wall, the CCM cavity can be extended with a standard PVC pipe of 160 mm, which must be cut to size yourself, so that an even round hole is created over the entire depth of the wall as soon as the wall is deposited.
CCM Brochure:
Advantages CCM
- Waterproof seal
- Specially made for round penetrations of 150mm
- Several modules can be linked (butterfly recesses).
- Price-wise very attractive for spare solutions.

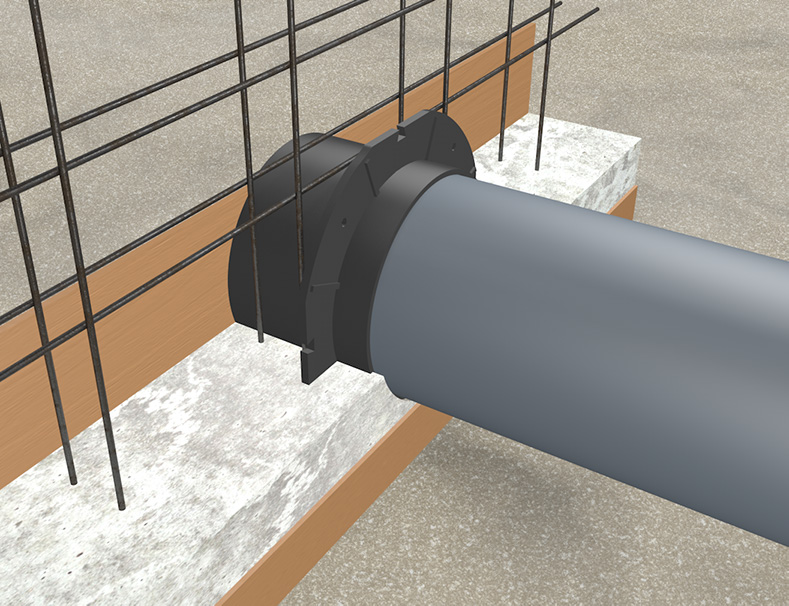

- Simple installation prior to pouring a concrete wall (fixing module to concrete reinforcement with e.g. tie wraps)

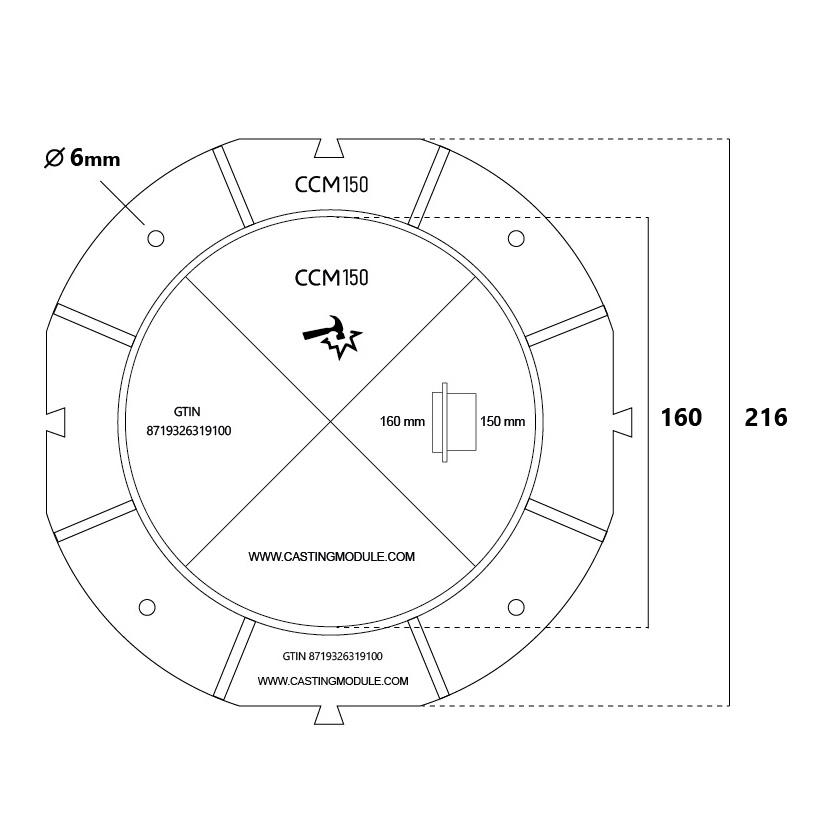

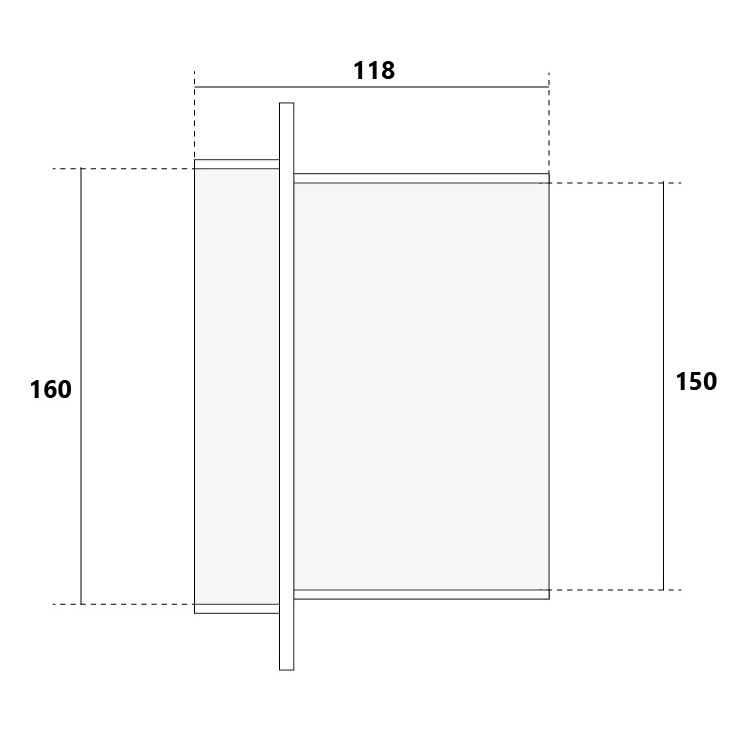

Dimensions CCM150

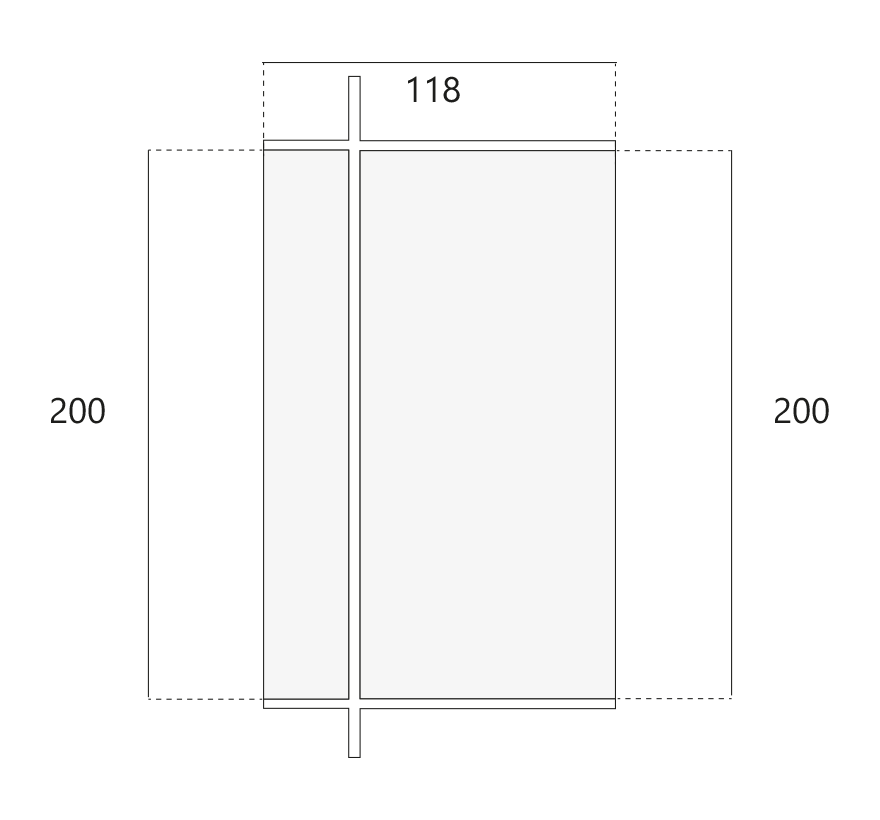

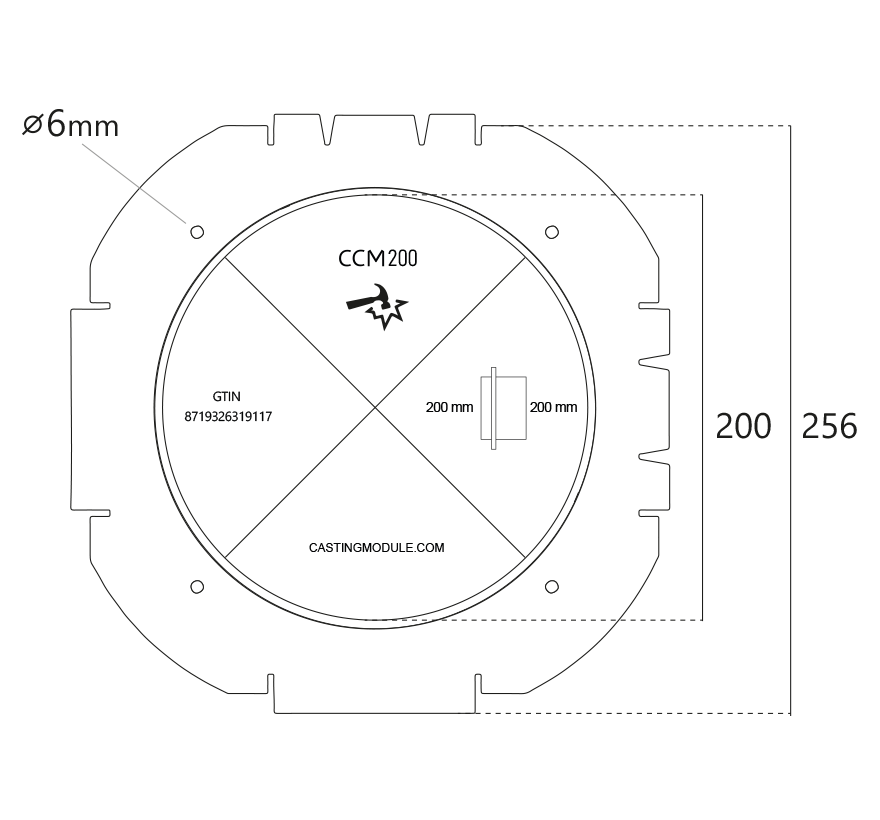

Dimensions CCM200
CCM installation
This video is disabled because of your cookie settings.
More info?
Do you have questions about the CCM, the casting process or your specific situation, our cable transit specialist Maurice Welbie will be happy to help you.
