As with all areas on board a ship, the open deck places special demands on installed equipment whether the area is for work, embarkation, rescue or winching. In addition, the visibility of the ship itself and its surroundings must also be taken into account. The required lighting solution must work in all weather conditions. A good lighting solution primarily provides a safe working environment for the crew.
Floodlights for ships
The innovative LED outdoor lighting fixtures are applicable for a wide range of different spaces, e.g. workshops, passageways etc. They are designed to meet marine requirements and to save energy and maintenance costs thanks to their extremely long service life. The combination of material and design ensures excellent heat control and thus a long life.
Assortiment Glamox
LED floodlight | |
LED floodlight | |
Halogen - HPS - MH floodlights | |
Ex LED foodlights | |
Ex zone 2 halogen floodlights | |
Luminell LED floodlights | |
Luminell Ex LED floodlights |
Download brochures:
FL70 LED floodlight
The FL70 LED Floodlight is designed for use on ship decks and areas where a lot of light is needed. Using the latest COB LED technology and driver technology it provides a virtually maintenance free solution for all high and medium intensity lighting requirements. The product design has undergone thorough simulations of heat conduction and dissipation. The robust and temperature-resistant components ensure very high functionality and an extremely long service life.
The FL70 is available in different beam angles: SB 18° - XNB 27° - XNB 39° - NB 60° - MB 80° - WB 100° and XWB 120° in 5000K
27000 lumens for the single module version
54000 lumens for the two-module version
Download brochure:
FL70 in webshopFL60 LED floodlight
The LED floodlights are designed for long life and high efficiency. The LED light source provides direct light and is insensitive to voltage fluctuations. The special design of the seawater-resistant aluminum module housing provides excellent cooling. Mounting bracket is made of stainless steel.
The LED light source and driver are designed for an extremely long life of 100,000 hours at an ambient temperature of 45°C with a residual light output of 70% (L70).
The FL60 is available in Wide beam (WB), Medium beam (MB), Spot beam (SB), with a clear polycarbonate front panel. The floodlights are available with 1, 2, 3 or 4 modules, with 4500 lumens per module (max 18000 lm) in 5000K.
The floodlights are designed according to the rules of maritime classification societies, and additionally according to the requirements of VDE and IEC / EN.
Download brochure:
FL60 in webshop
FL45 LED floodlight (discontinued)
The LED floodlights are designed for long life and high efficiency. The LED provides direct light and is insensitive to voltage drops. The special design of the seawater-resistant aluminum module housing provides excellent cooling. Mounting bracket is made of stainless steel.
The high power COB - high light output LED light source and driver are designed for a long life of 50,000 hours at ta 45°C and covered by a safety glass diffuser. The floodlight is available with different features such as Spot Beam (SB), Narrow Beam (NB), Medium Beam (MB), Wide Beam (WB) or Extra Wide Beam (XWB). LED in 3000K, 4000K, 5000K light color. Also available in 24VDC.
The FL45 is designed according to the rules of maritime classification societies, additionally VDE and IEC/EN.
The FL45 floodlight is discontinued. The replacement LED floodlights for this series, is the Luminell RLX series LED.

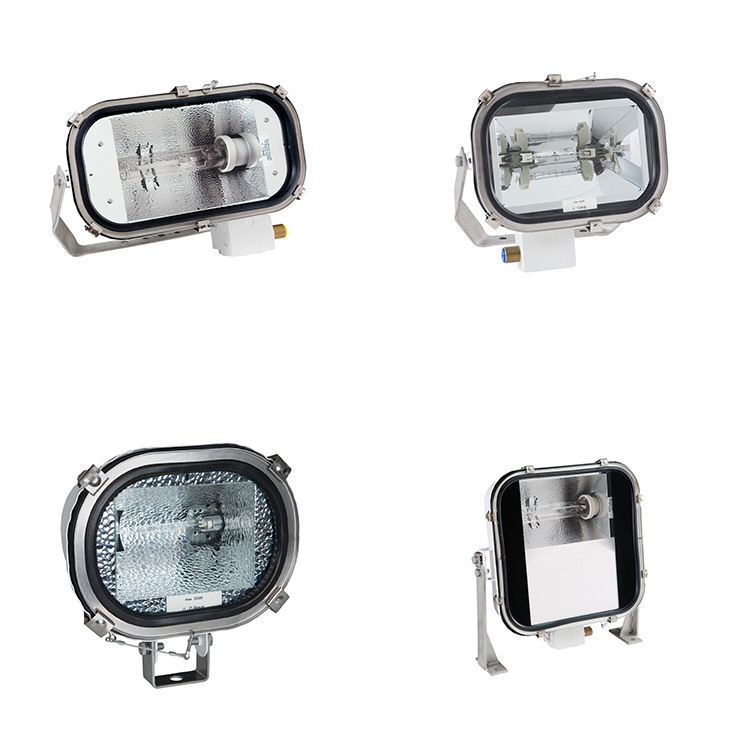

1076 Halogen - HPS - MH
1076 halogen floodlights with seamless housing made of deep drawn stainless steel ASIS 316. The housing is white powder coated and enamelled to a thickness of 70-80 m. The floodlights offer extreme corrosion resistance and a high light output.
Halogen floodlights provide direct light without warming up or cooling down with good color rendering. They are designed according to the rules of maritime classification societies, additional VDE and IEC/EN and are applicable to commercial shipping, industrial areas, yachts and fishing vessels.
Download brochure:
1076 Floodlights in webshop
Floodlights for Ex zones
Glamox offers various Ex spotlights in its range. These are available with both a conventional and LED light source. The Ex de LED floodlights are designed for a long life and a high efficiency without any maintenance. The Ex d module of the floodlight has no flame path and the junction box is Ex e approved.

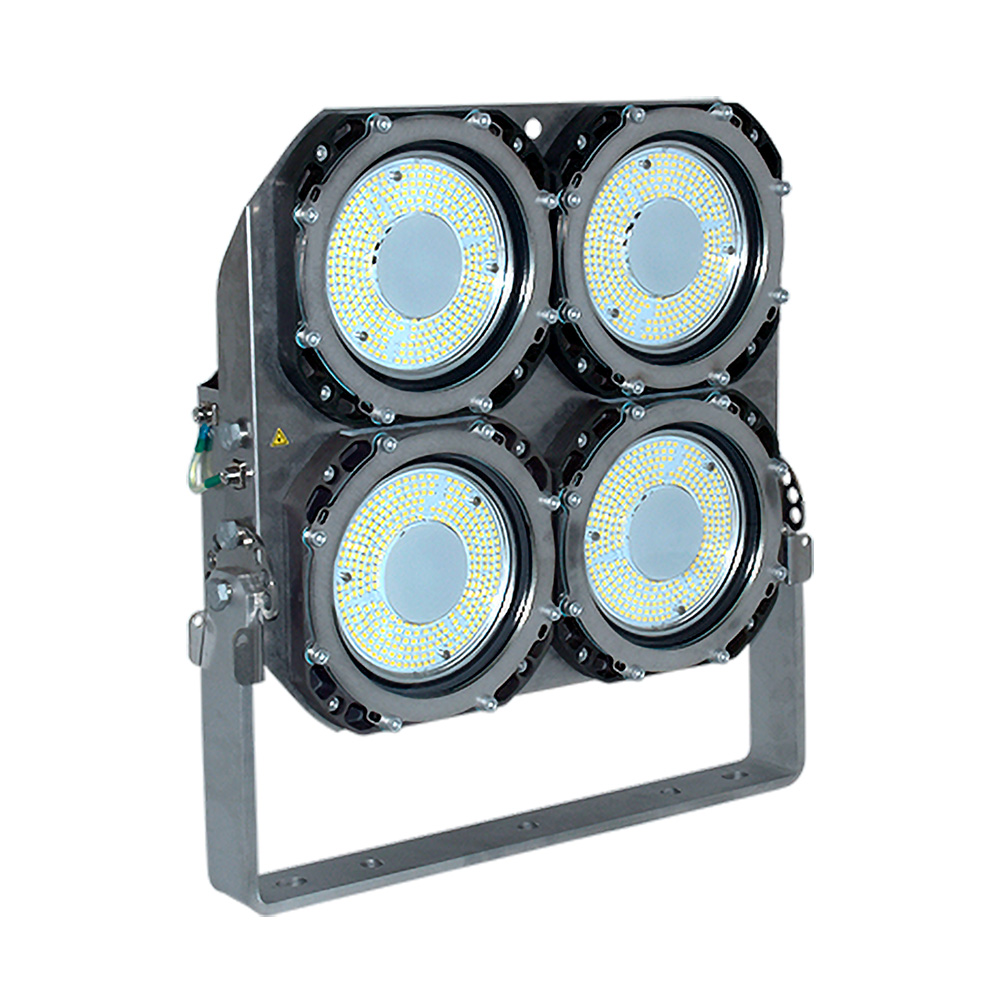

FX60
The FX60 EX LED floodlight is based on the standard FL60 floodlight and is suitable for use in zone I Ex areas. Unlike the FL60, the FX60 EX features flat lenses over each individual unit, whereas with the FL60 they are spherical. Like the FL60, each individual module delivers a light output of 4500lm and the FX60 EX is available with 1, 2, 3 or 4 modules in one housing. The housing is in all cases made of 316L stainless steel. Each module consumes 40W. Regardless of the number of modules, each version of the FX60 EX is available in a narrow beam, medium beam or wide beam version, depending on the desired opening angle of the floodlight's light. LED provides direct light and the floodlight is immune to voltage fluctuations. The special design of seawater resistant aluminum anodized module housing provides excellent cooling. The mounting frame and bracket are made of stainless steel.
The floodlights are IECEx, ATEX, RMRS and TRCU certified.
Series Ex floodlights:
- FX60 Ex led floodlight

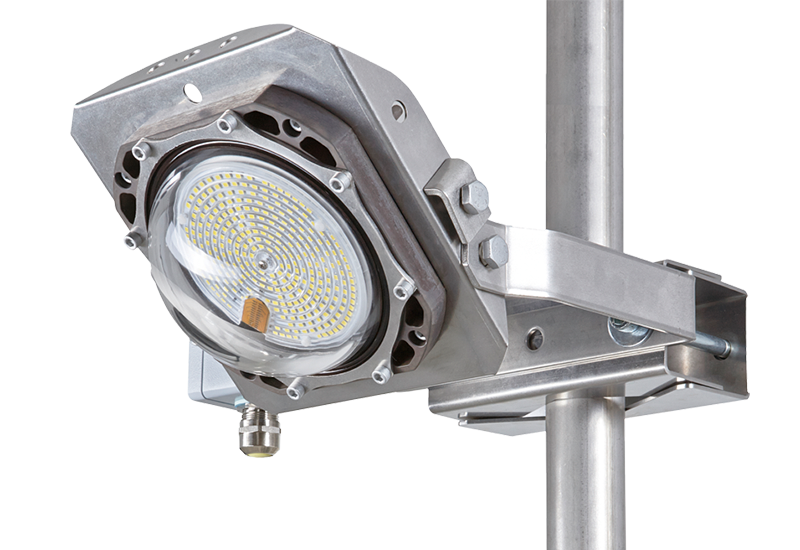

- TX65 Ex led area light
- 1776 Ex Halogen/HPS/Metal Halide floodlights
Brochures:
Ex Floodlights in webshop
FX60
TX65

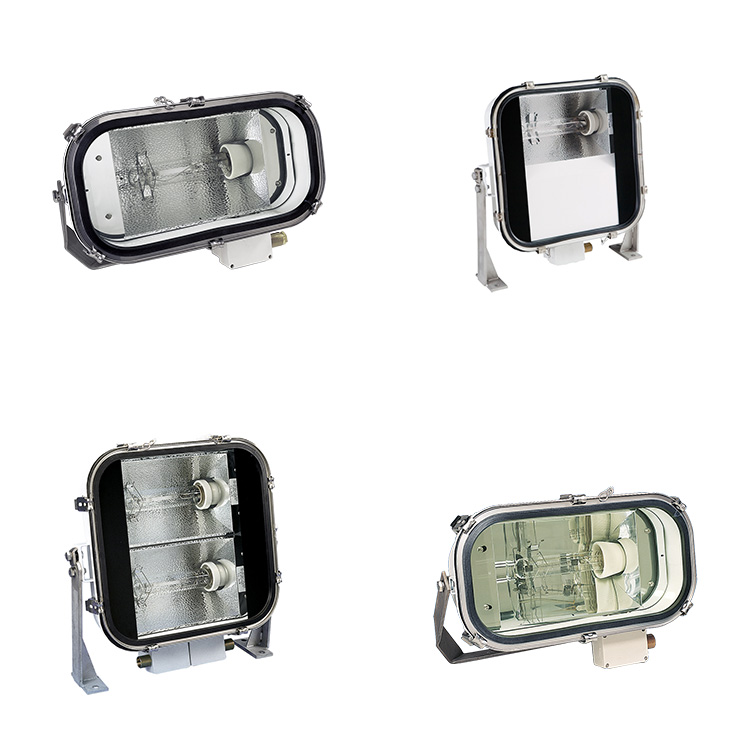

1776 Ex zone 2 floodlights (discontinued)
The 1776 series Ex n floodlights for high pressure sodium lamps (HPS) or metal halide lamps (MH) are applicable for zone 2 areas. The floodlights are fitted with a deep-drawn seamless steel housing and have a very high light output.
The Ex notation is Ex nR II T3 (60Hz) or Ex nR II T2 (50hz). The floodlights are IP67 equipped and have a deep drawn seamless steel housing. The light source is either a 500W halogen or a 400W metal halide lamp. The metal halide lamp, also known as high pressure mercury vapor, guarantees a very high light output. A ballast is required for the ignition of this lamp. This ballast is available separately (type 1527 Ex N ballast), but a variant of the 1776 Ex is also available with a ballast built into the housing. In all cases, the luminaire is fitted with safety glass at the front.
Download brochure:
Replacement: RLX Ex LED Floodlights

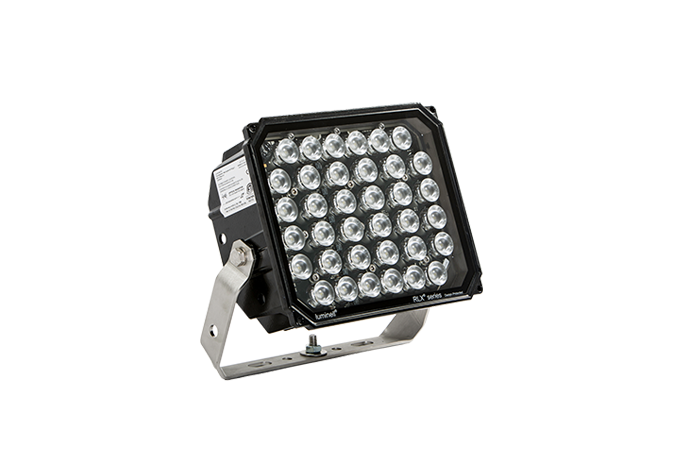

RLX LED Floodlights
Powerful LED floodlights for extreme environments. RLX D Floodlight takes over the place of the traditional High Pressure Sodium and Halogen floodlights and are suitable for multiple areas of use. The RLX™ D is a powerful floodlight with proven endurance for harsh environments.
The light distribution is excellent and will ensure a bright and safe working environment.
Available with various beams , from Spot 10 degrees to 110/45 degree Wide beam.
De RLX series LED floodlights consist of:
- RLX B (40W - 5000 lm)
- RLX C (80W - 10.000 lm)
- RLX D (160 or 240W - max 20.000 lm)
Characteristics for RLX LED floodlights:
- Flicker Free
- Excellent EMC characteristics
- Made to handle shocks and vibrations
- Corrosion class C5m
- Encapsulated internal electronics
- No ballast required
- No maintenance
Download brochure:

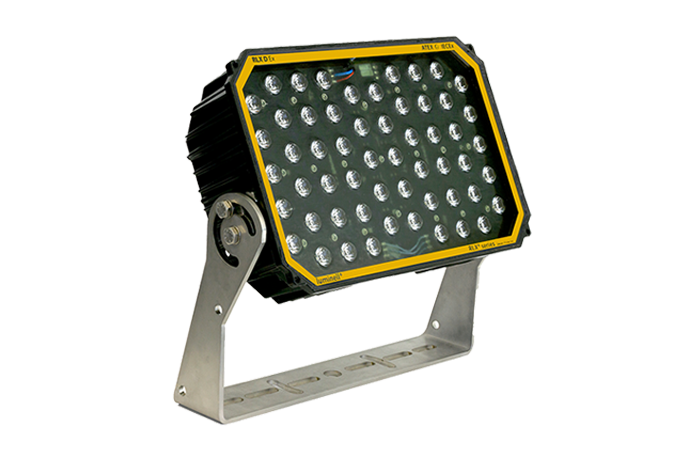

RLX Ex LED Floodlights
Both the encapsulated electronics and durable mechanics maximizes the potential of the
LED technology for demanding applications. The RLX™ DxZ1.21 will endure very corrosive environments as well as shocks and continual vibrations. It also lives up to strict EMC/EMI standards.
The Ex series LED floodlights from Luminell consist from the following:
- RLX CXZ1.21
- RLX DXZ1.21
- RLX DXZ2.21
Characteristics for RLX DZ1 Ex Luminell floodlights:
- ATEX and IECEx approved. Zone 1, 2, 21 and 22
- Low weight, 15 kg
- No specific conditions for use or installation. “X-FREE”
- Wide operating temperatures -55° C to +55° C
- Temperature classes T6/T5/T4
- Extreme lifetime up to 180 000 hrs* (70% light output remaining)
- Light efficiency up to 80% savings from conventional
- No flame path, no maintenance
- MIL-STD-461, remarkable EMC/EMI characteristics
- Crafted for demanding marine and offshore conditions
Download brochure:
Do you have questions about Glamox floodlights, or your specific situation, our lighting specialist Alfred Brussen will be happy to help you.
