Maritime Communication systems
Zenitel Marine has been the global market leader in internal maritime communications for ships and offshore platforms for many decades. Under the brand names Zenitel, Vingtor-Stentofon and Phontech, it offers a wide range of communication systems for on-board use: telephone systems, intercom, Public Address, PA-GA, talk-back, batteryless and cordless telephony, 2-way radio, infotainment and entertainment . Specialist systems are also available, such as the Master Clock System, the Sound Reception System and paging.
Maritime communication onboard
Zenitel's maritime communication systems offer high availability, are robust and reliable, scalable, cyber-secure and require minimal maintenance. In addition, Zenitel is strong in integrating multiple systems. For example, wireless systems can be linked to the fixed telephone system, but also to the fire alarm or CCTV system. In 2018, the Zenitel range was expanded with Phontech products through an acquisition. In addition to the Phontech talk-back systems, Phontech's two-wire telephone systems are a valuable extension of the range, as they are very suitable for replacing telephone systems on board existing ships or platforms.
Integration of systems increases ease of use
Zenitel is strong in the integration and combination of multiple systems. In addition, independently operating systems are linked to each other, so that the functionality of these systems is broadened. For example, wireless systems, such as walkie-talkies, pagers or cordless telephony, can be coupled to the fixed telephone system. In addition, for example, a link can be made with the fire alarm or the CCTV system. This greatly increases the functionality in some cases. Think of forwarding alarms to wireless devices or broadcasting messages from a wireless device. The combination of PA and GA with the telephone system is often used in practice. Integration is possible in two directions: partly distributing alarm and messages via the speakers of telephones, but also calling groups of speakers from a telephone. This not only improves the functionality of the systems, it also makes cabling simpler and cheaper.
Service, system refit and spare parts
Vingtor-Stentofon systems have been supplied to ships and platforms worldwide since the 1940s. There are now more than 30,000 ships sailing with a system supplied by Zenitel or one of its acquired companies. TTTBV is therefore regularly asked for on-board service, the rapid subsequent delivery of parts or products or the upgrade of an existing communication system.
TTTBV has an extensive in-house stock, on the basis of which not only can spare parts be supplied quickly, but also the need to expand or modernize an existing system in the short term. We also organize the physical exchange of components and central equipment as well as the programming of the software. In such cases, the crew is also carefully advised on what possibilities the modernized system offers and how it can be operated.
History Zenitel
The roots of the company Zenitel go back to 1901, when the company started in telegraphy. From the 1940s the company was active in maritime communication. Several mergers and acquisitions, especially within Scandinavia, eventually led to a market leading position for Zenitel Marine today, with Zenitel and Vingtor-Stentofon as its core brands. Communication is more important than ever today. Zenitel focuses on providing intelligent communication solutions to hear, be heard and understood at all times. From 2021, all new products will be released under the Zenitel brand name.
Public Address (PA)
SPA
Vingtor-Stentofon's Public Address System, also known as SPA-V2, is a cost-effective and versatile marine PA system. The system is available in different versions and offers a range of standard and optional functions that meet the requirements of a maritime public address and general alarm system for all types of vessels. The loudspeakers in the call system can be divided into up to 6 different zones (including an all call).
Each SPA rack supports output power from 120W to 2800W. A system can consist of multiple racks to provide the necessary capacity and redundancy.
The SPA system is an integrated, type-approved PA and GA solution. SPA is particularly cost-effective, when SPA loudspeaker loops are used in conjunction with the integrated ACM telephone sets, to cover areas where PA and GA are required on board the vessel. In all cabins on board in particular, the integration of PA and GA with the telephones present in the cabin is a major advantage: not only less hardware is required, but also less cabling, while the devices can be used multifunctionally.

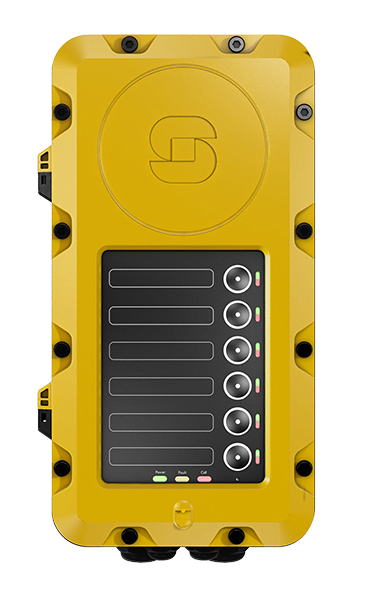

Exigo IP
Exigo uses more than 10 years of experience in critical communication via IP. Exigo IP PA offers a system that is flexible, scalable and programmable. Exigo is an IP Public Address system with which other communication systems can be integrated into the PA system. The high level of monitoring and the possibilities for remote operation and maintenance allows your company to centralize operations.
Exigo's amplifiers are advanced amplifiers that use IP technology and a modern Class D design for high efficiency. They are fully monitored and the monitoring status can be read remotely via SNMP and Syslog over IP. The range of available access panels is designed to meet the requirements in multiple use scenarios. Various versions of the control panels are available, including explosion-proof EX versions. They are all fully monitored, like the amplifiers, and will report any disturbances such as microphone problems as soon as they occur.
Some features of the Exigo system:
- PA and GA, certified for marine environments
- PA and VA, certified for EN54 applications
- Approved for use in naval vessels
- Power amplifiers, 100/70 volt line with Ethernet interface
- Supports 250 PA zones
- Supports 150 IP access panels
- Fully programmable control inputs and outputs
- Analog audio inputs and outputs
- AC and DC operation with automatic switching function
- Integration with IPBX, foghorn fire alarm
Download Public Address brochures:
Telephone & Intercom
Telephony and intercom are the basis of the Zenitel range. There are now more than 30,000 ships sailing with a system supplied by Zenitel or one of its acquired companies. Telephony and intercom are the core of the Zenitel range for a reason: even on board these systems form the basis for internal communication between crew members. Zenitel's telephone systems are essentially intercom systems, which have been functionally expanded to be used as a telephone system. Characteristic of the Zenitel telephone and intercom systems is the very high (high fidelity) sound quality, which is achieved by locally amplifying the incoming signal. This fulfills Zenitel's promise: to hear, be heard and understood.
TTTBV has an extensive stock of all telephone systems and intercom systems, on the basis of which not only spare parts can be supplied quickly, but also the wish to expand or modernize an existing system can be met in the short term.
ACM - Integrated Maritime Communication Systems
The Vingtor-Stentofon ACM system contributes to the safety of a vessel or platform by providing excellent on-board communication. The Vingtor-Stentofon ACM solutions have three main system variants. These are:
- Vingtor-Stentofon ACM Analog Phone System
- Vingtor-Stentofon Integrated Communication System
- Vingtor-Stentofon Advanced Communication System
The Vingtor-Stentofon ACM systems provide reliable, robust and proven communication solutions. The ACM systems have been continuously developed and improved to take advantage of new technologies such as IP networks. The various ACM systems are built around the Vingtor-Stentofon AlphaCom XE intercom exchange. The panel offers advanced features such as 1-BIT audio technology (20 kHz audio), IP switching, web services and a wide range of integration options.
AlphaCom XE is a modular platform that supports IP as well as analog telephones and networks. This modularity results in a very broad product range, meeting the needs of all types of ships and platforms. A suitable system solution is available for both a small tugboat and an advanced pipelayer or research vessel with hundreds of people on board.
Features Vingtor ACM:
- Type-approved solution for two-way communication and talkback, two-way hands-free voice communication, public address and general alarm
- Three main system packs; ACM Analog Telephone System, ACM Integrated Communications, PA and GA Solution System, ACM Advanced Integrated Communications System
- 1-BIT audio technology (20 kHz) ensures correct communication transmission
- Modular and flexible systems supporting all types of vessels schepen
- Can be paired with IP DECT and cordless handsets
- Supports IP, digital and analog telephones and networks
- Redundant power input with automatic switching between AC and DC
- Supports external services using IP and web technologies
ICX-500
ICX500 is a further development of the AlphaCom XE which can be used within complete IP systems consisting of Zenitel IP devices and SIP devices. This IP communication server is smaller and more powerful than the Alphacom XE and ready for future developments.
IC-Edge Series
The IC-Edge IP communication system is very simple in design but has extensive possibilities and interesting properties. A system consists only of Zenitel IP stations that communicate with each other using a PoE LAN network. One of the devices functions as an IC-Edge server, so a separate server is not necessary. IC Edge has 1 simultaneous speaking channel, making this system especially suitable for smaller configurations. In the event of a later expansion, it is possible to scale up to the ACM or ICX-500 platform while retaining the same infrastructure and devices.
Features IC Edge
- Simple system setup via web browser and automatic search for devices within the system
- No separate server needed
- Extensive range of Zenitel IP devices and other peripherals
- Supports SIP for connection to peripherals
- Supports SIP trunking for connection with e.g. GSM
- High-quality sound quality with, among other things, active environmental noise reduction
- Group calls, audio messages, mobile app and div. other features available
- Relay function in devices for, among other things, controlling signaling and door opener
- G711, G722 codec support
Download Intercom brochure
Intercom in webshopCIS Talkback system
Command Intercom System (CIS) is designed for important communication links on board seagoing vessels.
The CIS Talk-Back system comes from the Phontech product range acquired by Zenitel from Jotron in October 2018. The design is very compact and the performance is guaranteed by the use of microprocessor techniques. The CIS system is designed according to the standard dimensions of DIN 144, in line with our other console mounting models.
The range consists of CIS-3100 master stations with 5, 10 or 20 sub-post lines. Or a solution with up to 4 main posts and up to 15 sub posts. Various versions of sub-posts are available for the different locations on board.
The CIS product line also serves as a replacement for the previous ETB / CTB Talk-Back system from the Vingtor product range. In the event of replacement, we are happy to advise you on a total solution based on the existing cabling.
Download Talk-back brochure:
Talk-back in webshopVSP emergency telephone
The VSP system operates separately from the main power supply and meets the requirements for emergency communication between vital positions. The system has a versatile range of compact, robust and corrosion resistant stations for all environments.
With high-quality audio and built-in noise-cancelling microphones, the user is assured of a clearly audible signal at all times. VSP systems for EX environments are also available.
Properties:
- Provides emergency communication independent of the vessel's power supply
- Excellent voice quality
- Devices are equipped with noise-compensated microphones
- Built-in or linkable relays to control signal units
- Headphone connection possible (directly or via a plug-box)
Download brochure:
Emergency telephone in webshop
Sound reception SSRS
Sound reception systems are electronic, acoustic navigational aids that allow the ship's crew to receive audio signals from outside. This also indicates the sound direction on the device. This system is mainly used, even if there is a closed bridge. The sound reception system is installed as an aid to navigation as required by the International Regulations for Preventing Collisions at Sea (COLREG), 1972 standards.
Zenitel is widely recognized as one of the leading manufacturers of sound reception systems. Previously, the Vingtor-Stentofon VSS-V2 was offered as a sound reception system. After the acquisition of Phontech by Zenitel in 2018, the VSS-V2 system was replaced by the P-8300 MkII sound reception system. The P-8300 MkII system is designed to receive fog horn sound in the 70-2100 Hz range, while many competing brands only detect sound in the 70-870 Hz range.
Although the regulation for applying sound reception systems only applies to ships with completely closed bridges, these systems are increasingly also being chosen on ships without completely closed bridges.
Download the VSS brochure
Masterclock system
Zenitel's Masterclock system is the ideal solution for the distribution of both local time and UTC time on board ships. The Masterclock is equipped with various outputs and inputs, so that connections can be made to individual clocks as well as computers and equipment with time indication. In this way, the time between all clocks on board is synchronized and, if necessary, automatically adjusted as soon as a time zone is crossed. The four Slave Clock outputs can be individually programmed for different types of clocks. External radio receivers or time synchronization sources can be connected if higher accuracy is required.
Features Masterclock
- Accuracy +/- 0.1 sec./24 hours
- Wide range of different slave clocks (digital, IP65, etc.)
- Simple cabling and calibration
- Accessories and options such as radio or satellite coupler
- Signal Receivers, RS232C / RS485 Interface
- Alarm outputs
- Automatic summer/winter time change
Download masterclock brochure:
Masterclock in webshop
More info?
Do you have questions about the products of Vingtor Stentofon or your specific situation, our Zenitel specialist Bart Derks will be happy to help you.
